Category: CRL Zurich 07 180º Glass-to-Glass Inline Outswing Hinge

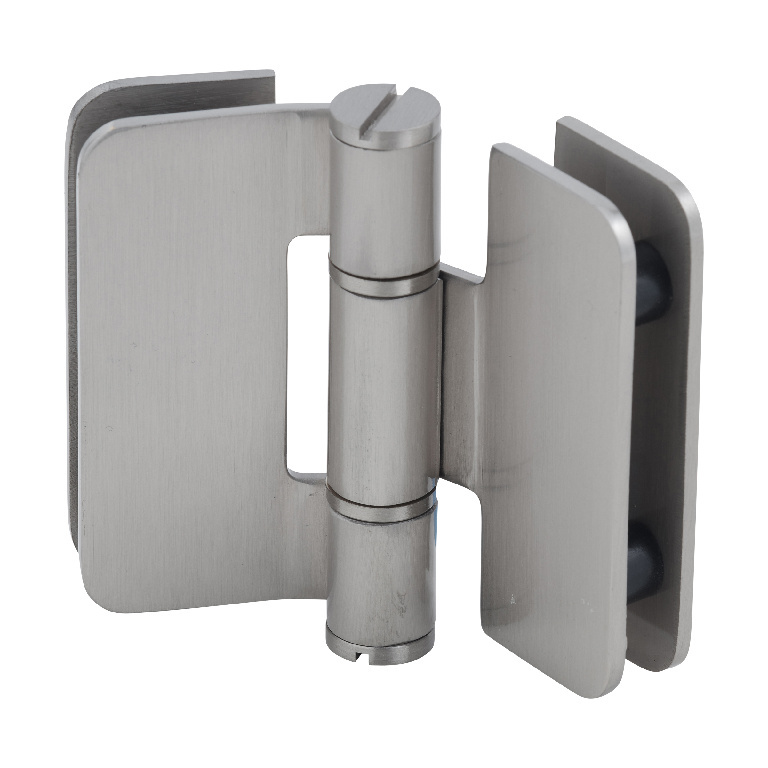

CRL Zurich 07 Series Brushed Nickel Glass-to-Glass Inline Outswing Hinge
SKU: ZUR07BN
UPC:
$151.12
(20% off)
$125.93
Product Details:

Ideal for Bi-Fold Application
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass
The CRL Zurich Series of professional hinges is
able to accommodate 5/16 to 3/8 inch (8 to 10 millimeter) tempered
safety glass. A variety of six styles, including Wall Mount and
Glass-to-Glass types, gives design flexibility. The Zurich Series
was CRL's first offering of the popular bi-fold hinges. All six
styles of Zurich Hinges feature stainless steel construction and
are available in many finishes. The brass finish is also available
in solid brass construction with a protective coating. In addition,
screws and washers are interchangeable for a special design accent.
Only two holes per attachment are required, with no cut-out
necessary.
Color: Brushed Nickel
Minimum Order: 1 Each
Additional Product Information:
Screw and Washer Accent Kits with interchangeable screws and
washers for Zurich Series Hinges let you add a special highlighting
accent to the installation.
Specifications:
Glass Thickness: 5/16 to 3/8 inch (8 to 10 millimeter) Tempered
Safety Glass
Special Feature: Ideal for Bi-Fold Application. Use ZUR01 and ZUR03
for doors that fold into the tub area. Use ZUR02 and ZUR05 for
doors that fold out to the bathroom area
Construction: Stainless Steel or Solid Brass
Hinge Swings: Outswing or Inswing
Closing Type: Free Swinging
Two Holes Required (No Cut-Out)
Includes: One Hinge, Gaskets, Screws and Template
