Product Details:

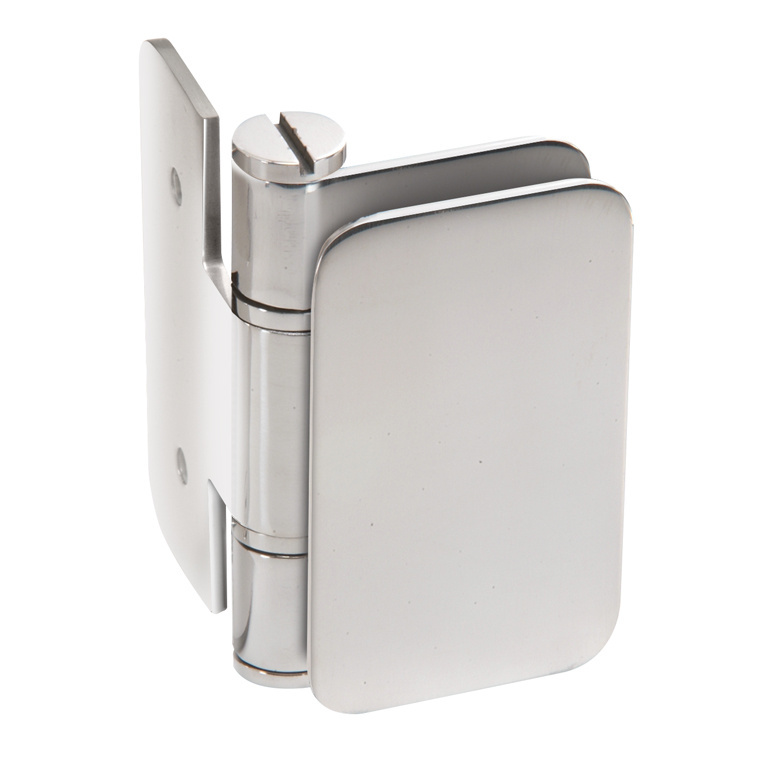

The CRL Zurich Series of professional hinges is able to accommodate 5/16 to 3/8 inch (8 to 10 millimeter) tempered safety glass. A variety of six styles, including Wall Mount and Glass-to-Glass types, gives design flexibility. The Zurich Series was CRL's first offering of the popular bi-fold hinges. All six styles of Zurich Hinges feature stainless steel construction and are available in many finishes. The brass finish is also available in solid brass construction with a protective coating. In addition, screws and washers are interchangeable for a special design accent. Only two holes per attachment are required, with no cut-out necessary.

Color: Polished Stainless

Minimum Order: 1 Each

Additional Product Information:
Screw and Washer Accent Kits with interchangeable screws and washers for Zurich Series Hinges let you add a special highlighting accent to the installation.

Specifications:
Glass Thickness: 5/16 to 3/8 inch (8 to 10 millimeter) Tempered Safety Glass
Special Feature: Ideal for Bi-Fold Application. Use ZUR01 and ZUR03 for doors that fold into the tub area. Use ZUR02 and ZUR05 for doors that fold out to the bathroom area
Construction: Stainless Steel or Solid Brass
Hinge Swings: Outswing or Inswing
Closing Type: Free Swinging
Two Holes Required (No Cut-Out)
Includes: One Hinge, Gaskets, Screws and Template
