Product Details:

Designed to Accommodate 3/8" (10 mm) Glass Thickness
The Ideal Clamp for Use on Mezzanines, Partitions, Railings and Windbreaks
Steel Pin Available for Additional Glass Support

This CRL Z-Series Square Type Radius Base Glass Clamp is designed to be used on 3/8 inch (10 millimeter) glass thickness. Constructed from either zinc or stainless steel, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.

Color:   Satin Chrome

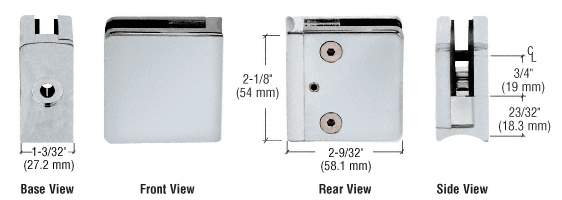

Width:  2-1/8 in (54 mm)
Height: 2-9/32 in (58.1 mm)

Minimum Order: 1 Each

Additional Product Information:
For securing the Z-Clamp to thin wall tubing (less than 1/8 inch), use CRL ZBOLT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 1/2 inch (12 millimeter) hole, insert the riv-nut, align the clamp with the bolt and drilled hole and start threading the bolt into the nut which results in compressing the nut.

1/2 inch (12 millimeter) hole is required if using the steel pin (included with the clamp) for additional glass support.

SPECIFICATIONS
Glass Thickness: 3/8 inch (10 millimeter) glass
Base Design: Radius
For Use With:  1-1/2 to 2 inch (38 to 51 millimeter) diameter round tubing
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Coated Painted Zinc Clamps are suggested for more durability in exterior applications
For 1/4, 5/16 and 3/8 inch (6, 8 and 10 millimeter) glass, a 1/2 inch (12 millimeter) hole is required if using the steel pin (included with the clamp) for additional glass support.

Includes: Rubber Gaskets, Grommet and Steel Pin (for optional use)
