Category: Z-Series Square Type Radius Base Zinc Glass Clamps
CRL Satin Chrome Z-Series Square Type Radius Base Zinc Clamp for 1/2" Glass
SKU: Z612SC
UPC:
Product Details:

Designed to Accommodate 1/2" (12 mm) Glass Thickness
The Ideal Clamp for Use on Mezzanines, Partitions, Railings and
Windbreaks
Steel Pin Available for Additional Glass Support
This CRL Z-Series Square Type Radius Base Glass
Clamp is designed to be used on glass 1/2 inch (12
millimeter) thickness. Constructed from either zinc or stainless
steel, the clamps are the perfect solution for partitions,
railings, windbreaks and countless other projects.
Color: Satin Chrome

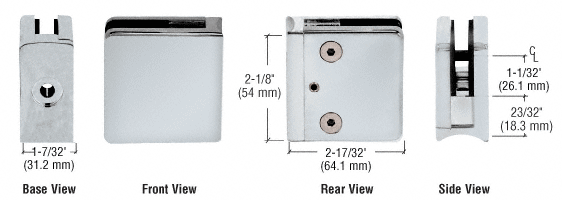

Width: 2-1/8 in (54 mm)
Height: 2-17/32 in (64.1 mm)
Minimum Order: 1 Each
Additional Product Information:
For securing the Z-Clamp to thin wall tubing (less than 1/8 inch),
use CRL ZBOLT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For
installation, drill a 1/2 inch (12 millimeter) hole, insert the
riv-nut, align the clamp with the bolt and drilled hole and start
threading the bolt into the nut which results in compressing the
nut.
1/2 inch (12 millimeter) hole is required if using the steel pin
(included with the clamp) for additional glass support.
SPECIFICATIONS
Glass Thickness: 1/2 (12 millimeter) glass
Base Design: Radius
For Use With: 1-1/2 to 2 inch (38 to 51 millimeter) diameter
round tubing
Material: Choice of Zinc Constructed or Stainless Steel. Stainless
Steel or Powder Coated Painted Zinc Clamps are suggested for more
durability in exterior applications
For 1/2 inch (12 millimeter) glass, a 9/16 inch (14 millimeter)
hole is required if using the steel pin (included with the clamp)
for additional glass support.
Includes: Rubber Gaskets, Grommet and Steel Pin (for optional
use)
