ANSI A156.4 - Grade 1
Adjustable Spring Power Size 1 to 6
Durable Cast Iron Closer Body with Finished Cover


Door Closers Cross Reference Chart

Door Closers Data

Cast Iron Door Closers have long been considered to be the industry's most durable closers.

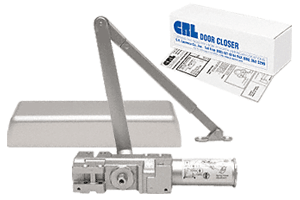

The CRL PR90 Grade 1 Adjustable Spring Power Cast Iron Surface Mount Door Closer is recommended for high traffic public buildings like hospitals, airports and shopping centers to meet both ADA accessibility requirements and provide the ultimate durability and maintenance free service. Closing and latching speed controls are independently adjustable and an adjustable back check feature helps prevent damage to the closer, door, and adjacent surface when the door is violently swung open due to wind or heavy pedestrian traffic.

Color:                                Aluminum

Closer Body Length:           12-1/4 in (311 mm) with Cover

Horizontal Mounting Holes: 2 each 1 in (25.4 mm) Center to Center

Vertical Mounting Holes:     2-1/4 in (57 mm) Center to Center

A Parallel Arm Bracket and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications.

Optional accessories, such as Drop Plates and Hold Open Arms, are available for special installations.
