Product Details:

Designed to Accommodate 1/4" and 5/16" (6 and 8 mm) Glass Thickness
The Ideal Clamp for Use on Mezzanines, Partitions, Railings and Windbreaks
Steel Pin Available for Additional Glass Support

This CRL Z-Series Square Type Flat Base Glass Clamp is designed to be used on glass thickness of 1/4 to 5/16 inch (6 to 8 millimeter). Constructed from either zinc or stainless steel, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.

Color:   Polished Stainless

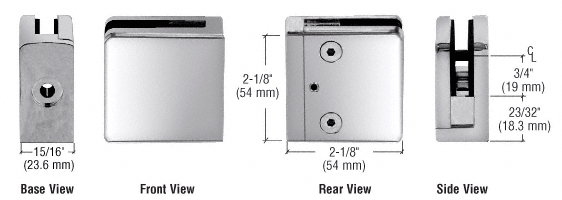

Width:  2-1/8 in (54 mm)
Height: 2-1/8 in (54 mm)

Minimum Order: 1 Each

Additional Product Information:
For securing the Z-Clamp to thin wall tubing (less than 1/8 inch), use CRL ZBOLT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 1/2 inch (12 millimeter) hole, insert the riv-nut, align the clamp with the bolt and drilled hole and start threading the bolt into the nut which results in compressing the nut.

1/2 inch (12 millimeter) hole is required if using the steel pin (included with the clamp) for additional glass support.

SPECIFICATIONS
Glass Thickness: 1/4 or 5/16 inch (6 or 8 millimeter) glass
Base Design: Flat
For Use With: Square tubing or other flat surfaces
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Coated Painted Zinc Clamps are suggested for more durability in exterior applications
For 1/2 inch (12 millimeter) glass, a 9/16 inch (14 millimeter) hole is required if using the steel pin (included with the clamp) for additional glass support.

Includes: Rubber Gaskets, Grommet and Steel Pin (for optional use)
