Category: Jackson Adjustable Spring Power Overhead Concealed Door Closers
CRL Jackson Adjustable Spring Power 90 Degree Hold-Open Overhead Concealed Door Closer with "GE" Hardware Package - REPLACEMENT PART 21101GE19
SKU: V90NH0GE
UPC:
$238.40
(20% off)
$198.67
Product Details:

"GE" Hardware Package For 1/2"
Deep Top Rail
Adjustable Spring Power Size 1 to 4 Closer Body
Will Retrofit Existing Fixed Size Overhead Concealed
Closers
Door Closers Cross Reference Chart
The
Jackson Adjustable Spring Power Overhead
Concealed Door Closer is available for A.D.A
barrier-free applications. The closer is adjustable in a range of
Sizes 1 through 4, allowing the spring power to be set for A.D.A.
handicap barrier-free opening force requirements.

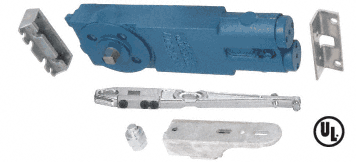

The "G" Package, consisting of CRL8010FS Standard
Mounting Clips, CRL8010S Side Load Arm Assembly and CRL8010G Bottom
Pivot, is intended for new door installations with 1/2 Inch (12/7
millimeter) deep top rail and side-load applications.
This closer will also retrofit existing Jackson and similar style
fixed-size closer installations.
Closer Body Length: 11-5/8 in (295 mm)
Closer Body Width: 3-11/16 in (94 mm)
Minimum Order: 1 Each
