Product Details:

"GE" Hardware Package For 1/2" Deep Top Rail
Adjustable Spring Power Size 1 to 4 Closer Body
Will Retrofit Existing Fixed Size Overhead Concealed Closers

Door Closers Cross Reference Chart

The Jackson Adjustable Spring Power Overhead Concealed Door Closer is available for A.D.A barrier-free applications. The closer is adjustable in a range of Sizes 1 through 4, allowing the spring power to be set for A.D.A. handicap barrier-free opening force requirements.

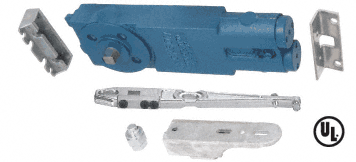

The "G" Package, consisting of CRL8010FS Standard Mounting Clips, CRL8010S Side Load Arm Assembly and CRL8010G Bottom Pivot, is intended for new door installations with 1/2 Inch (12/7 millimeter) deep top rail and side-load applications.
This closer will also retrofit existing Jackson and similar style fixed-size closer installations.

Closer Body Length: 11-5/8 in (295 mm)
Closer Body Width:   3-11/16 in (94 mm)

Minimum Order: 1 Each
