Category: Z-Series Round Type Flat Base S.S. Glass Clamps
CRL Brushed Stainless Z-Series Round Type Flat Base Stainless Steel Clamp for 3/8" Glass
SKU: Z510BS
UPC:
Product Details:

Designed to Accommodate 3/8" (10 mm) Glass
Thickness
The Ideal Clamp for Use on Mezzanines, Partitions, Railings and
Windbreaks
Steel Pin Available for Additional Glass Support
This CRL Z-Series Round Type Flat Base Glass
Clamp is designed to be used on 3/8 inch (10
millimeter) glass thickness. Constructed from either zinc or
stainless steel, the clamps are the perfect solution for
partitions, railings, windbreaks and countless other
projects

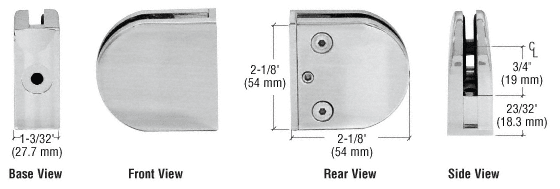

Color: Brushed Stainless
Width: 2-1/8 in (54 mm)
Height: 2-1/8 in (54 mm)
Minimum Order: 1 Each
Additional Product Information:
For securing the Z-Clamp to thin wall tubing (less than 1/8 inch),
use CRL’s ZBOLT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For
installation, drill a 1/2 inch (12 millimeter) hole, insert the
riv-nut, align the clamp with the bolt and drilled hole and start
threading the bolt into the nut which results in compressing the
nut.
1/2 inch (12 millimeter) hole is required if using the steel pin
(included with the clamp) for additional glass support.
SPECIFICATIONS
Glass Thickness: 3/8 inch (10 millimeter) glass
Base Design: Flat
For Use With: Square tubing or other flat surfaces
Material: Choice of Zinc Constructed or Stainless Steel. Stainless
Steel or Powder Coated Painted Zinc Clamps are suggested for more
durability in exterior applications
For 1/2 inch (12 millimeter) glass, a 9/16 inch (14 millimeter)
hole is required if using the steel pin (included with the clamp)
for additional glass support.
Includes: Rubber Gaskets, Grommet and Steel Pin (for optional
use)
