Category: CRL 3/8" Diameter Window Balances, Non-Tilt; Blue Bushing
CRL 21" Heavy Duty Window Balance with Blue Bushing (must be ordered with one of four clips)
SKU: FR2130
UPC:
Product Details:
Requires Factory Installed End Clips
Non-Tilt Window Type with Industry Standard 3/8" Tube
Diameter
Blue Bushing Indicates Sash Load Weights of Up to 35 Pounds
This heavy duty Tubular Spiral Window Balance
for non-tilt type windows will replace 3/8 inch (9.5 millimeter)
metal or plastic tube balance with a sash load capacity of up to 35
pounds (15.8 kilograms).

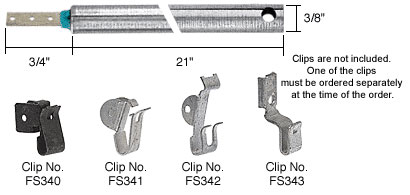

These balances require factory installed clips. There are four
clips available:
FS340,
FS341,
FS342 and
FS343.
Tube Diameter: 3/8 in (9.5 mm)
Tube Length:21 in (584.2 mm)
Bushing Color: Blue
Minimum Order: 1 Balance
Appropriate tensioning tool is
H3788.
For
Help on "Spiral Window Balances Removal and Installation
Guidelines" click on this link.
For Help
on "How to Order Window Balances for Non-Tilt Type
Windows" click on this link.
How to Order Tubular Spiral Window Balances
1. To select the proper Tubular Spiral Balance, check diameter of
the metal or plastic tube on the old balance: 9/16 inch is Series
"FJ"; 3/8 inch is Series "FM" or
"FR", depending on the fitting at the end of the rod.
2. Measure Tube Length only; do not include rod length.
3. Check color of Nylon Bushing. If White or Red, select a Standard
Duty Balance; If Blue, select a Heavy Duty Balance.
4. Verify if fitting on rod protruding from the Nylon Bushing
matches an illustration for Non-Tilt Type Balances. Select the
appropriate series ("FM" or "FR") if balance
diameter is 3/8 inch.
"SPECIAL ORDER ITEM - NON-REFUNDABLE,
NON-RETURNABLE."
