Category: 9/16" Diameter Tubular Window Balance; Red Bushing
CRL 18" Tubular Spiral Tilt Window Balance with Red Bushing
SKU: FH1820
UPC:
Product Details:
Red Bushing Indicates Sash Load Weights of Up to
25 Pounds
Tilt Window Type with Industry Standard 9/16" Tube Diameter
Will Replace Either Metal or Plastic Tube Balances
These
Tubular Spiral
Window Balances for tilt type windows will replace a
9/16 inch (14.3 millimeter) metal or plastic tube balance with a
sash load capacity of up to 25 pounds (11.3 kilograms). It will
also replace the same size spiral balance with a white bushing. The
9/16 inch (14.3 millimeter) size of the metal tube is commonly
referred to as 5/8 inch (15.9 millimeter) in the industry. While
this balance is packaged and sold individually, it is our
recommendation that both balances in the window be replaced at the
same time.
Most likely, you will need a tensioning tool to adjust the
spring operating tension on your balance.
Please, use
H3787 Tensioning Tool.

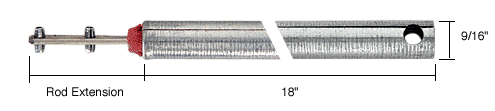

Tube Diameter: 9/16 in (14.3 mm)
Tube Length: 18 in (457.2 mm)
Bushing Color: Red or White
Minimum Order: 1 Package
For
Help on "Spiral Window Balances Removal and
Installation Guidelines"
click on this link.
For Help on
"How to Order Window Balances for Tilt Type
Windows" click
on this link.
How to Order Tubular Spiral Window Balances
1. Check the tube diameter of the metal or plastic tube on the old
balance.
2. Measure the tube length from the end of the balance to the
bottom of the colored nylon bushing only. Do not include the rod
extension.
3. Check the color of the nylon bushing.
4. Verify that the rod extension protruding from the nylon bushing
matches what is shown.
5. Match tube diameter, tube length, nylon bushing color against
the information shown next to the Catalog Number. If all agree, and
the rod extension matches the one in the photo, then this is the
correct balance.
"SPECIAL ORDER ITEM - NON-REFUNDABLE,
NON-RETURNABLE."
