STB Window Channel Balance, Non-Tilt, Stamped 32-12 - 33"
STB Window Channel Balance, Non-Tilt, Stamped 32-12 - 33"
 | 61AP32120
Category: 1/2" Non-Tilt Hemmed Window Channel Balances, Stamped -1
STB Window Channel Balance, Non-Tilt, Stamped 32-12 - 33"
SKU: 61AP-3212-0
UPC:

$42.91 (20% off)

$35.76

Product Details:

Non-Tilt Window Channel Balance

Stamped Number: 33-12
Sash Weight: 38-41 lbs.
Spring: Double
Balance Length: 33"
Balance Depth: 19/32"
Balance Width: 5/8"
End Guides Attached: 61-502 and 61AP-505

Before ordering, make sure the length and stamped numbers on the channel being replaced match the length and stamped numbers listed above.

Ordering Information:

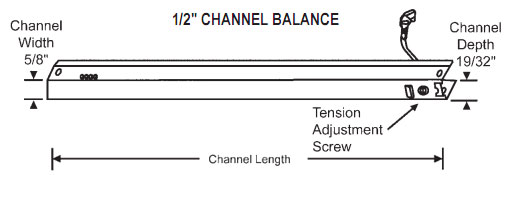

1. Measure the metal channel length (not including any attached ends), width, and height
2. Identify the number stamped on the metal channel
3. Select the corresponding part number
4. Identify the appropriate Top and Bottom Guides

Whenever replacing Window Channel Balances be sure to check the guides, take-out clips, sash cams and terminal clips, as age and weathering can make plastic and nylon parts brittle and worn. Even metal parts will show fatigue with constant use, so be sure to inspect them also.



"SPECIAL ORDER ITEM - NON-REFUNDABLE, NON-RETURNABLE."
