Category: STB Truth Single Arm Maxim Casement Operators
STB Dyad Casement Window Operator, Right Hand, Rear Face-Mounted, No Offset, White
SKU: 36-253-3NEG
UPC:
Product Details:

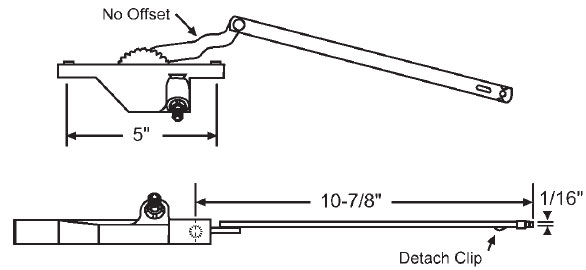

Rear Mount Dyad Casement Window Operator
No Offset
No E-Gard
Provides smooth, continuous control of casement and awning windows
by utilizing the dyad, or two-linked design.
Will work on windows designed to open up to 90 degrees.
Detachable clip linkage allows operator to be disengaged from sash
for easy assembly and installation.
Detachable clip is located on the link arm.
Detachable clip can be reversed in the field.
Detachable clip should be placed on underside of link arm.
Operator rear face-mounts from the outside with two machine screws,
set five inches apart
Color: White
Spline Size: 11/32"
One operator per package
Handle is not included and needs to be purchased separately. Use
part numbers
37-137-3,
37-109FH-3,
37-138-3, or
37-150-3.
