STB Dyad Casement Window Operator, Left Hand, Rear Face-Mounted, No Offset, White
White Left Hand No Offset Rear Face-Mounted Dyad Casement Window Operator | 362483
Category: Truth Maxim Folding Handle
STB Dyad Casement Window Operator, Left Hand, Rear Face-Mounted, No Offset, White
SKU: 36-248-3
UPC:

$45.28 (20% off)

$37.73

Product Details:

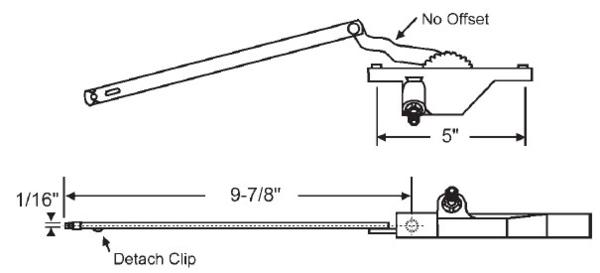

Rear Mount Dyad Casement Window Operator

No Offset

Provides smooth, continuous control of casement and awning windows by utilizing the dyad, or two-linked design.
Will work on windows designed to open up to 90 degrees.
Detachable clip linkage allows operator to be disengaged from sash for easy assembly and installation.
Detachable clip is located on the link arm.
Detachable clip can be reversed in the field.
Detachable clip should be placed on underside of link arm.
Operator rear face-mounts from the outside with two machine screws, set five inches apart

Color: White

Spline Size: 11/32"

One operator per package

Handle is not included and needs to be purchased separately. Use part numbers 37-137-3, 37-109FH-3, 37-138-3, or 37-150-3.
