Category: CRL 5-11/64" Dual Arm Casement Window Operator
STB Casement Window Operator, Right Hand, Mechanism Only, 10-1/2" & 5-17/64" Arms, Link Offset Up, Clip on Bottom
SKU: 36-196
UPC:
Product Details:
Mechanism ONLY - Does Not Include Cover
or Handle
From Truth Manufacturing
Dual Arm Action

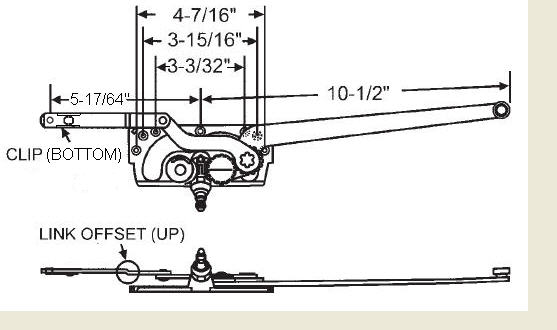

Please, determine handing according to the picture
Dual arm action of the operator pushes the sash
open while pulling the hinge side of the sash to the open
position.
When properly installed, the result is an almost effortless
operation of both casement and awning-type windows of varying sizes
and weights, including those with insulated and double-insulated
glass.
Typical operating torque is less than one foot-pound to open and
close a 60 pound (27.2 kilogram) sash to 90º.
Plastic or Metal
Covers and Handles for
this operator mechanism are available. Please, choose a handle with
11/32" Spline (Crank or T-Type).
