Product Details:

Fits on Sliding Glass Patio Doors by many manufacturers, Viking Doors including. Keyed.

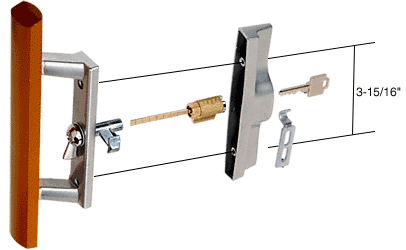

This Internal Lock Handle is easily installed and reversible for either right or left hand applications. The inside pull is constructed of die cast aluminum with the wood handle, the outside pull is a die cast aluminum.  It has an automatic unlatching feature which prevents accidental lockout.  It, also, has a Night Lock.

This Handle Set fits the doors up to 1-1/4" thick - with the use of the mounting screws provided.  It will fit the doors up to1-1/2" thick if the mounting screws are replaced with the longer ones.

If a replacement Latch Hook is needed, please, use part E2168 for up to 1" thick doors.  This handle set can be used on doors up to 1-1/2" thick, but it is recommended to replace the Latch Hook with E2106 for 1-1/4" thick doors, and SB135 for up to 1-1/2" thick doors.

 If a replacement Lock Keeper is needed, please, use part E2054.

Color: Aluminum.

Minimum Order: One Package ( one inside pull with latch, one outside pull, keeper, night lock, key cylinder with two keys and installation fasteners).
