Product Details:

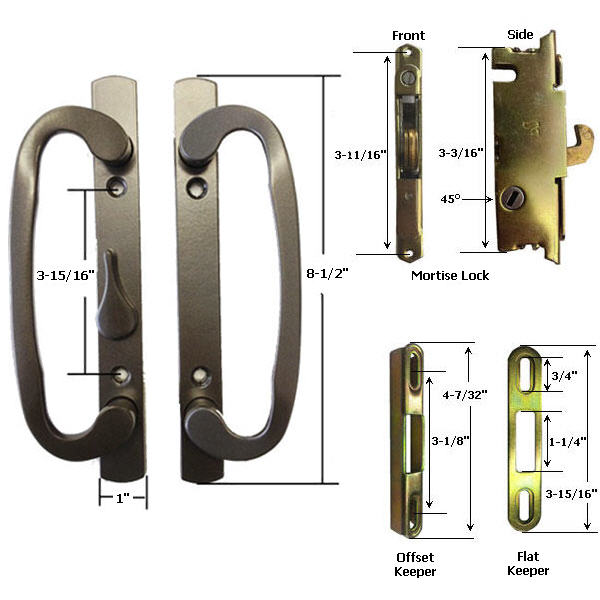

Sliding Glass Patio Door Handle Kit
with Handle Set, Mortise Lock, and Keepers

Sliding Glass Patio Door Handle Set
Commonly used on Sash Controls and other manufacturer's doors
Non-handed; Handle can be reversed to work on right or left handed doors
The latch lever is offset (off-center); position B

Color: Bronze
Center-to-Center Holes: 3-15/16"
Overall Height: 8-1/2"
Width: 1"
Security: Non-Keyed

Mortise Lock w/ Optional Faceplate
Center-to-Center Holes: 3-11/16" (without faceplate) or 4-5/8" (with faceplate)
Round Face
45 Degree Keyway

Keeper(s)
Raised Keeper
Center-to-Center Holes: 3-1/8"
Height: 4-7/32"
Width: 11/16"
Thickness: 7/16"

Flat Keeper
Center-to-Center Holes: 2-13/16"
Height: 3-15/16"
Width: 3/4"
Thickness: 1/8"

Each Kit includes:
(1) Patio Handle Set - (2) Handles, (2) Mounting Plates, Mounting Hardware
(1) Mortise Lock with optional Faceplate
(2) Keepers - (1) Raised and (1) Flat
Installation Screws
