Product Details:
Used on Pan American Windows

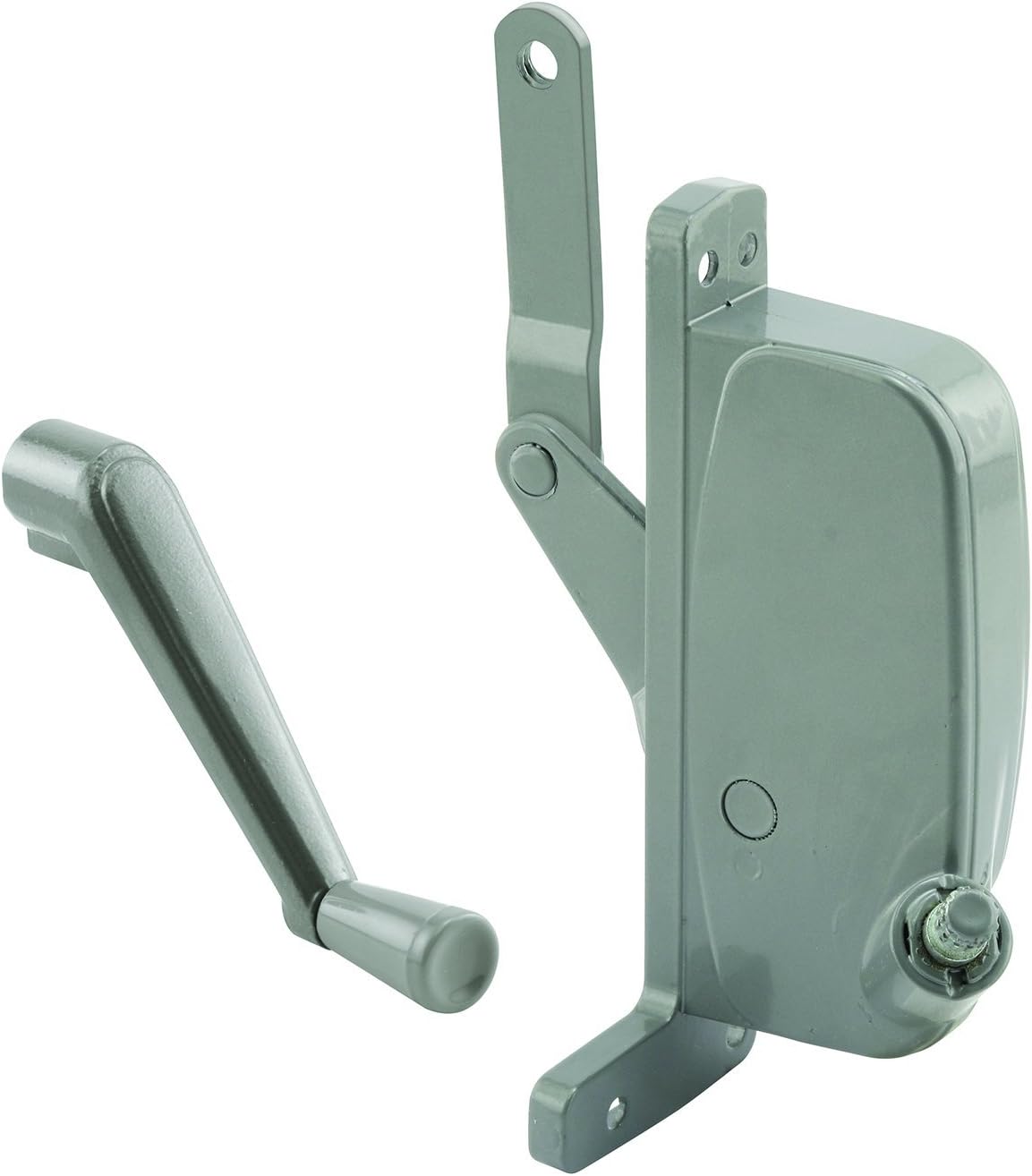

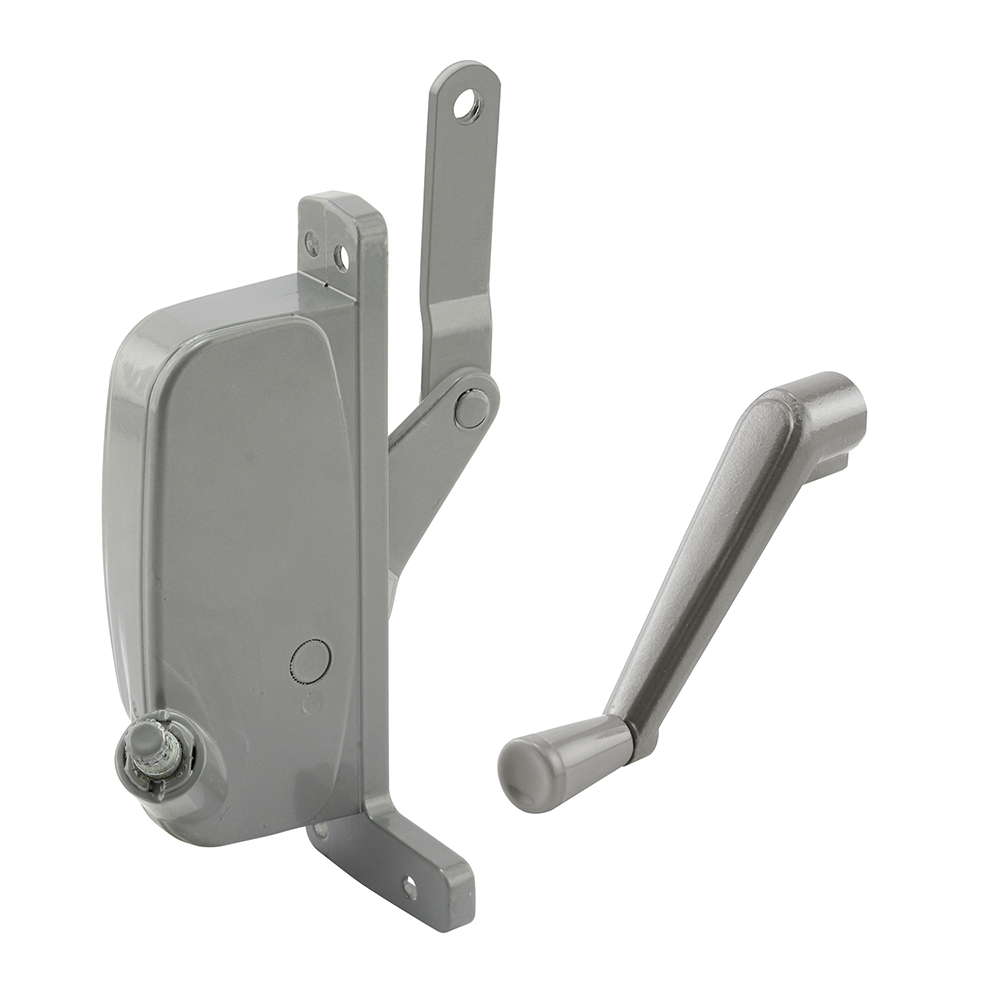

This
Window Operator has two
top screw holes which are 7/16 inch (11.1 millimeter) on center and
two bottom screw holes which are 1-5/16 inch (32.4 millimeter) on
center. The distance between the top and bottom screw holes is
5-1/4 inches (133 millimeters) on center. The straight link arm is
2-5/8 inches (66.7 millimeters) long with a 5/16-18 thread at the
link end. It fits on
Pan American windows.
Minimum Order: 1 Package
Each package contains one operator with link arm and screw.
If any replacement parts are needed, please, click the following
link: Repair Parts.
