Product Details:

Excellent for either wood or aluminum patio doors.
45-Degree Keyway position with the hook fully extended.

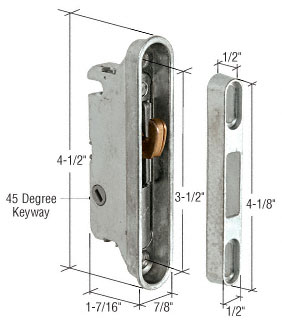

Because of the pocket trim plate this Mortise Lock is recessed so that the door closes flush against the jamb. It is excellent for either wood or aluminum patio doors. Steel housing and hook. Round end face place. Die cast trim plate. Hook projection is adjustable. The integration of the keeper and lock allows positive anti-lift protection. The plated steel hook is mounted in an anti-friction pivot and encased in a steel housing. The overall width of the patio door lock is 7/8" (22.2 millimeters) and the depth is 1-7/16" (36.5 millimeters).

Used withMortise Style Handle Sets.

Center-to-Center Holes: 3-1/2 in (89 mm).

Minimum Order: one package (one lock and keeper assembly with fasteners per package).
