Product Details:

For Use With Jackson 1285 and 2085 Concealed Vertical Rod Panic Exit Device
Non-Handed - Easy Field Reversible
Escutcheon Flat Lever Design

The CRL Jackson Lockable Flat Lever Escutcheon Trim is designed to be used with the 1285 and 2085 Concealed Vertical Rod Panic Exit Device. The narrow 1-3/4 inch (44 millimeter) escutcheon allows it to be used with narrow stile aluminum storefront doors, as well as hollow metal and wood doors. The trim is non-handed and easily field reversible. The trim requires the use of a standard one inch mortise cylinder DRA10 with a longer cam DRA10CAM, which locks or unlocks the Lever (ANSI Function - 08).


Color: Duranodic Bronze

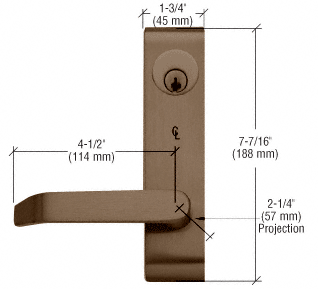

Escutcheon Hight: 7-1/4 in (184 mm)
Escutcheon Width: 1-3/4 in (45 mm)
Lever Length: 4-1/2 in (114 mm)
Minimum Order: 1 Each
