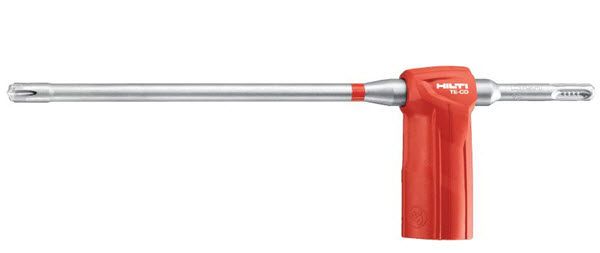

Product Details:
Drilling and hole cleaning in one step.
Optimum hole cleaning for consistent anchor setting.
Robustness, lifetime and drilling speed equal to TE-CX drill
bits.
Minimized snagging or sticking when drilling into rebar.
Applications: Drilling holes for anchoring structural steel
connections such as steel coulmns and beams. Drilling holes for
structural connections with post-installed rebars. Drilling holes
for anchoring secondary steel structures sucha as staircases and
steel ledgers. Drilling holes for structural renovation or
upgrading with post-installed rebars. Drilling holes for
substitution of misplaced or missing rebars.
Diameter: 9/16 in
Working length: 9-7/16 in (240 mm)
Connection end: TE-C
Base material: Reinforced concrete, Concrete
Tool type: All tools with TE-C (SDS Plus)
connection
Working mode: Hammer drilling
Hilti PN: 2018943
Package Quantity: 1 Piece
