Product Details:

Drilling and hole cleaning in one step.
Optimum hole cleaning for consistent anchor setting.
Robustness, lifetime and drilling speed equal to TE-CX drill bits.
Minimized snagging or sticking when drilling into rebar.

Applications: Drilling holes for anchoring structural steel connections such as steel coulmns and beams. Drilling holes for structural connections with post-installed rebars. Drilling holes for anchoring secondary steel structures sucha as staircases and steel ledgers. Drilling holes for structural renovation or upgrading with post-installed rebars. Drilling holes for substitution of misplaced or missing rebars.

Diameter: 5/8 in
Working length: 9-7/16 in (240 mm)
Connection end: TE-C
Base material: Reinforced concrete, Concrete
Tool type: All tools with TE-C (SDS Plus) connection
Working mode: Hammer drilling

Hilti PN: 3497393

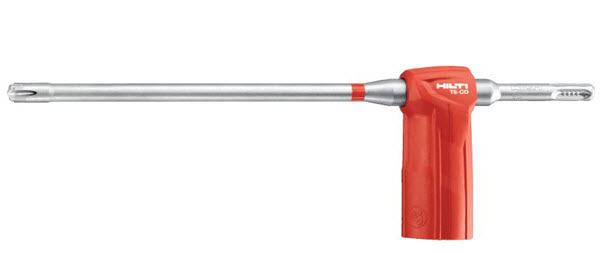

Package Contents: 3x Hollow drill bit TE-CD 5/8" x 14"
