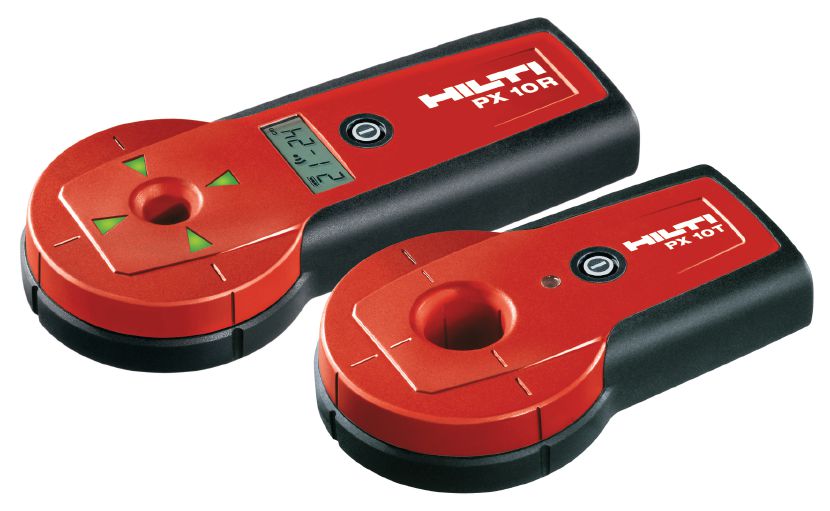

Hilti PX 10 Transpointer - 273123
Hilti PX 10 Transpointer - 273123 | TPX10
Category: Hilti Measuring Systems
Hilti PX 10 Transpointer - 273123
SKU: TPX10
UPC:

$3,208.13 (20% off)

$2,673.44

Product Details:

Eliminates time consuming procedures such as drilling pilot holes, manual measuring, and "trial and error" measuring
Reduces inconvenient overhead drilling by locating points through a floor or wall, allowing holes to be drilled from either side
Single person operation with use of adhesive putty
Ability to measure wall and ceiling thickness of most materials (i.e. wood, drywall, block and concrete with or without rebar)
Large window displays measurements of wall and ceiling thickness of most materials

Operating Range (In all Directions): 2in to 4ft 5in (5cm - 1.34m)

Accuracy (Tool Positioning):
Average Conditions: ±0.32" (8mm) for every 7.87" (20cm) thickness p to 3.28' (1m)
Ideal Conditions: ± 0.08"(2mm) for every 7.87" (20cm) thickness up to 3.28' (1m) (w/o metal influence)
Accuracy may be significantly reduced by irregular positioned rebar, welded reinforcing mesh, sheet metal, or other metal objects close to the tool. Please refer to the operating instructions for a detailed list of technical data.

Wall Thickness (Average Conditions): up to 4ft 5in (±5% of thickness)
Slope Adapter: ±2°
Operating Temperature: -4 to 131° F (-10 to 55° C)
Protection Class: IP 56 as per IEC 60529
Battery Type: 9 V alkaline
Operating Time: 17h

Hilti PN: 273123

Package Includes:
Tool, receiver, (2) hand straps, PUA 91 adhesive putty, PUA 92 adhesive strips, (2) 9V alkaline batteries, and operating instructions in an impact-resistant plastic tool box
