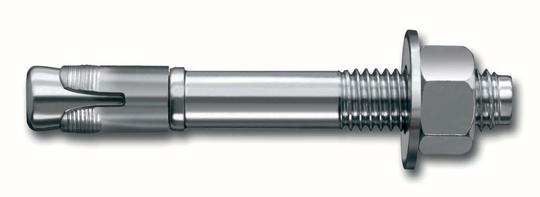

Hilti KWIK Bolt 3 Expansion Anchor - 304 Stainless Steel - KB3 3/4" x 4-3/4" - 3001209 - Box of 80
Hilti KWIK Bolt 3 Expansion Anchor - 304 Stainless Steel - KB3 3/4" x 4-3/4" - 3001209 - Box of 80 | KB330434434B
Category: Hilti KB3 Kwik-Bolt 3 304 Stainless Steel Expansion Anchors
Hilti KWIK Bolt 3 Expansion Anchor - 304 Stainless Steel - KB3 3/4" x 4-3/4" - 3001209 - Box of 80
SKU: KB330434434B
UPC:

$9,079.01 (20% off)

$7,565.84

Product Details:

Approved by ICC-ES for Masonry and Concrete
Rounded End for Easy Installation
Dog Point Impact Section to Prevent Thread Damage During Installation
Best Approval Rating in Class

Hole Diameter: 3/4 in
Anchor Length: 4-3/4 in
Thread Length: 1-5/8 in

Allowable Loads (Greater Than/Equal To 4000 psi Concrete):
Embed Depth: 3-1/4 in
Tension (lb): 2350 in
Shear (lb): 5645 in

For Base Materials:
Lightweight Concrete, Uncracked Concrete, Lightweight Concrete over Metal Deck, Grout-filled Block

Anchor Material:
304 Stainless Steel

Box Quantity: 80

Hilti Part Number: 3001209

Listings and Approvals:
ICC-ES (International Code Council) - ESR-1385 (AC01 Masonry), ERS-2302 (AC193 Concrete)
FM (Factory Mutual) Approved
UL Listed
COLA (City of Los Angeles) - RR 25577
Metro-Dade County - NOA No. 06-0810.13
Qualified Under an NQA-1 Nuclear Quality Program
