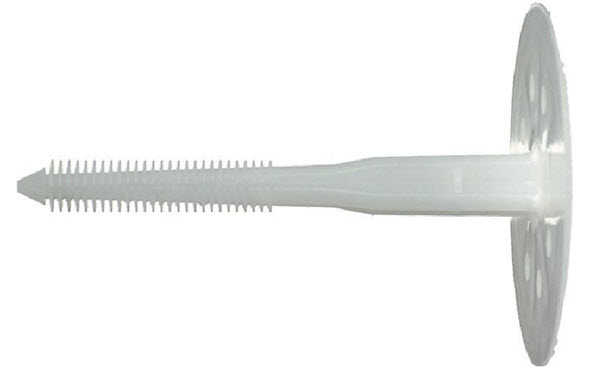

Product Details:

No metal parts which reduces potential condensation behind finished coat of EIF systems
Specially structured head to help ensure bonding of plaster applied directly over the anchor
Suitable for insulation thickness up to 4-3/4" for enhanced versatility
Can be installed on concrete or masonry - for greater versatility

Applications: Fastening hard, self-supporting, insulating materials such as expanded polystyrene.

Drill bit diameter: 5/16 in
Anchor length: 5-7/8 in
Insulation material thickness fastened - min: 3-15/16 in
Min. embedment depth: 1-1/8 in
Insulation material thickness fastened - max: 4-3/4 in
Base materials: Concrete (uncracked), Masonry (hollow), Masonry (solid)
Installation temperature - min: 32 °F
Installation temperature - max: 104 °F
In-service temperature – range: -40 - 176 °F
In-service temperature - min: -40 °F
In-service temperature - max: 176 °F

Box Quantity: 250

Hilti Part Number: 332110
