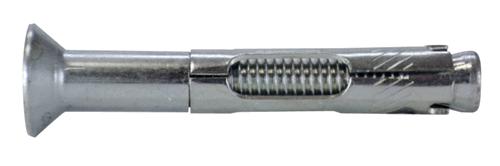

Product Details:

Stud-type Anchor Design Allows Easy Through-type Fastenings
Can be Set in Bottomless Hole
Anchor Size is Same as Drill Bit Size
Variety of Head Styles, Lengths, and Sizes
High Performance in Block, Masonry, and Concrete Base Materials

Hole Diameter: 3/8 in
Minimum Drill Depth: 1-3/4 in
Minimum Embed Depth: 1-1/4 in
Max. Fixture Thickness at Min. Embed Depth: 4-3/4 in

Allowable Work Loads at Minimum Embed in 4000 psi Concrete:
Tension (lb): 565
Shear (lb): 870

For Base Materials:
Uncracked Concrete, Grout-filled Block, Hollow Concrete Block, Clay Brick

Anchor Material:
Carbon Steel, Zinc Plated (minimum 5 micron)

Head Type: Flat Phillips Head

Box Quantity: 25

Hilti Part Number: 336251

Listings and Approvals:
UL Listed
