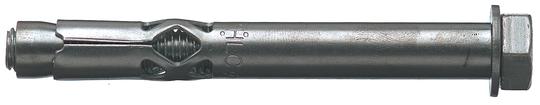

Hilti HLC Sleeve Anchor - Carbon Steel - Bolt Head - HLC-H 5/16" x 2-5/8" - 338091- Box of 800
Hilti HLC Sleeve Anchor - Carbon Steel - Bolt Head - HLC-H 5/16" x 2-5/8" - 338091- Box of 800 | HLCHCS516258B
Category: Hilti HLC Carbon Steel Sleeve Anchors
Hilti HLC Sleeve Anchor - Carbon Steel - Bolt Head - HLC-H 5/16" x 2-5/8" - 338091- Box of 800
SKU: HLCHCS516258B
UPC:

$4,524.86 (20% off)

$3,770.72

Product Details:

Stud-type Anchor Design Allows Easy Through-type Fastenings
Can be Set in Bottomless Hole
Anchor Size is Same as Drill Bit Size
Variety of Head Styles, Lengths, and Sizes
High Performance in Block, Masonry, and Concrete Base Materials

Hole Diameter: 5/16 in
Minimum Drill Depth: 1-3/8 in
Minimum Embed Depth: 1 in
Max. Fixture Thickness at Min. Embed Depth: 1-5/8 in

Allowable Work Loads at Minimum Embed in 4000 psi Concrete:
Tension (lb): 450
Shear (lb): 560

For Base Materials:
Uncracked Concrete, Grout-filled Block, Hollow Concrete Block, Clay Brick

Anchor Material:
Carbon Steel, Zinc Plated (minimum 5 micron)

Head Type: Bolt Head

Box Quantity: 800

Hilti Part Number: 338091

Listings and Approvals:
UL Listed
