Product Details:

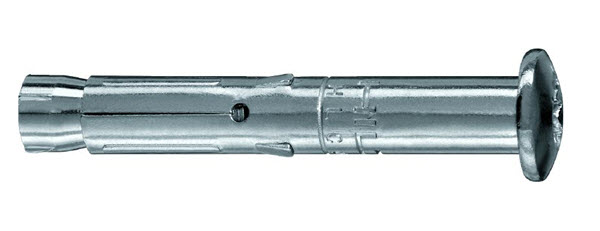

Stud type anchor design allows easy through-type fastenings and can be set in bottomless hole
Round head slotted for special applications
Pre-assembled anchor for easy and fast installation
Anchor size is same as drill bit size for easy installation
Comprehensive testing in block, masonry and concrete base materials

Applications: Fastening in solid concrete and masonry base materials.

Drill bit diameter: 1/4 in
Anchor length: 2 in
Baseplate clearance hole: 3/8 in
Base materials:Concrete (uncracked), Masonry (grout-filled CMU), Masonry (solid)
Material, corrosion: Steel, zinc-plated
Head configuration: Rounded head
Type of fixing: Pre-fastening, Through-fastening
Standard embedment depth: 1 in
Drilling depth: 1.38 in
Max. fixture thickness at standard embedment depth: 1 in
Installation direction: All
Environmental conditions: Indoor, dry conditions
Required tightening torque: 2.21 ft-lbf
Material composition: Steel, zinc-plated (min. 5 µm)

Box Qunatity: 100

Hilti Part Number: 336239
