Category: Hilti Sleeve Anchors

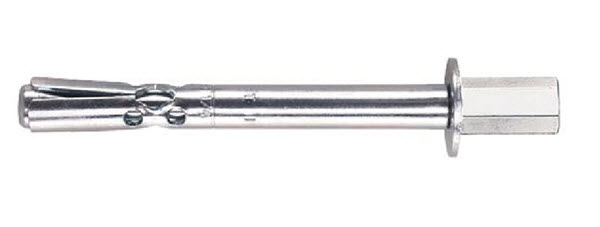

Hilti HLC-RC Economical Sleeve Anchor with Rod Coupling 1/2" x 2-1/4" - 336262 - Box of 25
SKU: HLCRCSARC12214
UPC:
$398.40
(20% off)
$332.00
Product Details:
Anchor size is same as drill bit size for easy installation
High performance in block, masonry and concrete base materials
Applications: Hanging rod applications.
Drill bit diameter: 1/2 in
Anchor length: 2-1/4 in
Baseplate clearance hole: 5/8 in
Internal thread size: 3/8 in
Base materials: Concrete (uncracked), Masonry
(solid)
Material, corrosion: Steel, zinc-plated
Head configuration: Internally threaded
Standard embedment depth: 1.50 in
Drilling depth: 2.13 in
Installation direction: All
Required tightening torque: 14.75 ft-lbf
Material composition: Steel, zinc-plated (min. 5
µm)
Box Qunatity: 25
Hilti Part Number: 336262
