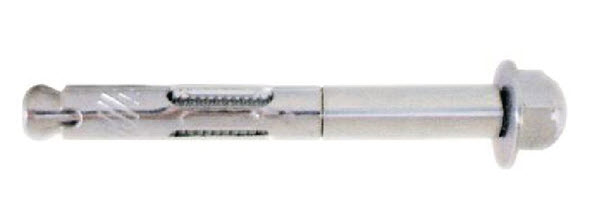

Product Details:

Stud-type anchor design allows easy through-type fastenings and can be set in bottomless hole
Acorn head ideal for special applications
Pre-assembled anchor for easy and fast installation
Anchor size is same as drill bit size for easy installation
Comprehensive testing in block, masonry and concrete base materials

Applications: Fastening in solid concrete and masonry base materials.

Drill bit diameter: 1/4 in
Anchor length: 2-1/4 in
Baseplate clearance hole: 3/8 in
Base materials: Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
Material, corrosion: Steel, zinc-plated
Head configuration: Externally threaded w/acorn nut
Type of fixing: Pre-fastening, Through-fastening
Standard embedment depth: 1 in
Drilling depth: 1.38 in
Max. fixture thickness at standard embedment depth: 1.25 in
Installation direction: All
Environmental conditions: Indoor, dry conditions
Material composition: Steel, zinc-plated (min. 5 µm)

Box Qunatity: 1800

Hilti Part Number: 338078
