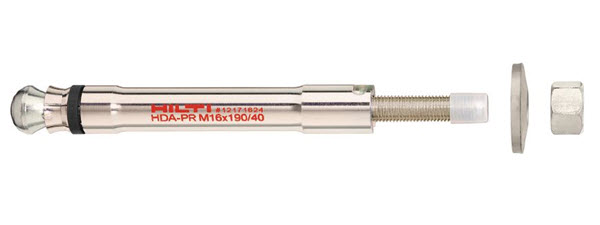

Hilti HDA-PR Ultimate Performance Pre-Set Undercut Anchor for Dynamic Loads M16 x 190/40 - 339349 - 4 Pieces
SKU: HDAPRUA1619040-4
UPC:
$4,444.51
(20% off)
$3,703.76
Product Details:
Self-undercutting facilitates fast and reliable installation
without the need for a separate undercutting tool or additional
operations
Close spacing and small edge distance thanks to low expansion
forces
The resulting keying effect provides a secure hold even in cracked
concrete under dynamic loading
Combines the flexibility and immediate loading capability of a
post-installed mechanical anchor with the performance of a
cast-in-place headed stud
Completely removable if necessary
Applications: Safety-relevant, heavy-duty fastenings for all
dynamic loading (shock, seismic and fatigue) in cracked or
uncracked concrete, including applications in nuclear power plants.
Fastenings to support heavy pipes, safety barriers, industrial
machines, crane rails, dorm structures, crash barriers, roof
fixings, elevator tracks, bridge retrofitting etc.
Anchor size: M16 in
Max. fixture thickness at standard embedment
depth: 1-9/16 in
Baseplate clearance hole: 18 mm
Drill bit diameter: 30 mm
Base materials: Concrete (cracked), Concrete
(uncracked)
Environmental conditions: Outdoor
Material composition: Stainless steel, 316
Length identification mark: R
Type of fixing: Pre-fastening
Anchor length: 275 mm
Washer Size: 1.77 in
Wrench Size: 24 mm
Head configuration: Externally threaded
Package Quantity: 4 Pieces
Hilti PN: 339349
