Product Details:

Compatible with the HDI-TE-CX automatic setting tool and stop drill bit system for highly productive and reliable fastening

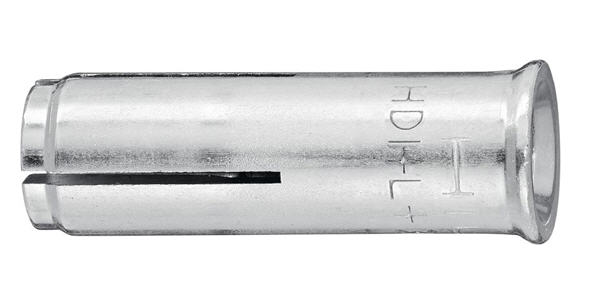

Flared end provides flush installation, consistent anchor depth, and easy rod alignment
Step plug design reduces number of hammer blows up to 50%
Anchor, setting tool and Hilti drill bit form a matched tolerance system provide reliable fastening

Applications: Suspended ceilings, pipe fixing, cable trays, scaffolding and temporary applications in soild concrete.

For Base Materials: Concrete (light weight), Concrete (light weight over metal deck), Concrete (uncracked)
Material, Corrosion: Steel zinc-plated
Head configuration: Internally threaded
Type of fixing: Pre-fastening
Environmental conditions: Indoor, dry conditions
Material composition: Steel, zinc-plated (min. 5 µm)

Box Quantity: 50

Hilti Part Number: 2080047

Approvals / Test reports: FM (Factory Mutual), UL (Underwriter Laboratories)
