Product Details:

Compatible with the HDI-TE-CX automatic setting tool and stop drill bit system for highly productive and reliable fastening

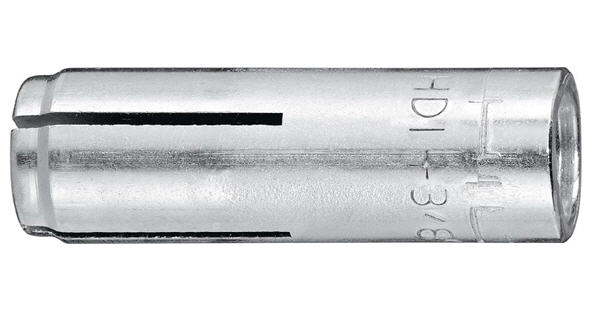

Internally threaded anchor for applications in the medium load range
Step plug design reduces number of hammer blows up to 50%
Anchor, setting tool and Hilti drill bit form a matched tolerance system provide reliable fastening

Applications: Threaded rod hangers, plumbing, heating, ventilation and air conditioning systems and suspended pipes.

Internal thread size: 3/8" in
Drill bit diameter: 1/2" in
Anchor length: 1-9/16" in
Standard embedment depth: 1-9/16" in
Max. tightening torque: 8.1 ft-lbs

For Base Materials: Concrete (light weight), Concrete (light weight over metal deck), Concrete (uncracked)
Material, Corrosion: Steel zinc-plated
Head configuration: Internally threaded
Type of fixing: Pre-fastening
Environmental conditions: Indoor, dry conditions
Material composition: Steel, zinc-plated (min. 5 µm)

Anchor diameter (Imperial): 3/8" in
Thread length: 5/8" in
Baseplate clearance hole: 7/16" in
Drilling depth: 1.56 in

Box Quantity: 50

Hilti Part Number: 2058129

Approvals / Test reports: FM (Factory Mutual), UL (Underwriter Laboratories)
