Product Details:

Compatible with the HDI-TE-CX automatic setting tool and stop drill bit system for highly productive and reliable fastening

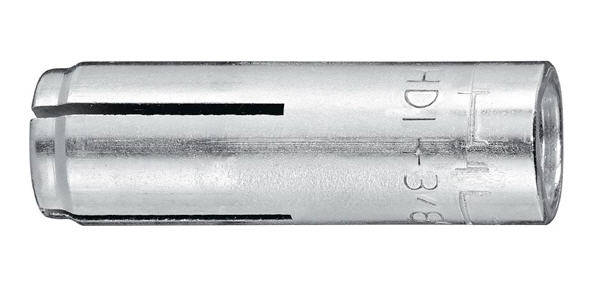

Internally threaded anchor for applications in the medium load range
Step plug design reduces the number of hammer blows required by up to 50%
Anchor, setting tool and Hilti drill bit form a matched tolerance system for reliable fastening

Applications: Threaded rod hangers, plumbing, heating, ventilation and air-conditioning systems and suspended pipes

Internal thread size: 1/4 in
Anchor Length: 1 in
Drill bit diameter: 3/8 in

For Base Materials: Concrete (light weight), Concrete (light weight over metal deck), Concrete (uncracked)
Material, Corrosion: Steel zinc-plated
Head configuration: Internally threaded
Type of fixing: Pre-fastening
Environmental conditions: Indoor, dry conditions
Material composition: Steel, zinc-plated (min. 5 µm)

Box Quantity: 100

Hilti Part Number: 258541

Approvals / Test reports: FM (Factory Mutual), UL (Underwriter Laboratories)
