Category: CRL Residential Automatic Door Sweep
Gordon Glass® Dark Bronze Residential Automatic Door Sweep for 36" Door
SKU: DB019DV36
UPC: 096523027792
Product Details:
Spring Loaded Sweep contacts actuation button which is fastened
to stop.
Fills up to 1" (25.4 mm) gaps.
Seals against air, dust and water.
This Residential Automatic Door Sweep is a spring
loaded, door bottom sweep that retracts up and away from the face
of the door when door is opened. When door is closed the sweep is
closed by an applied cam (supplied) and the gap at the door base
and threshold is sealed preventing dust, moisture and wind from
entering.
It is ideal for use where carpeted interiors require the door sweep
to lift "up and away" from the carpet.

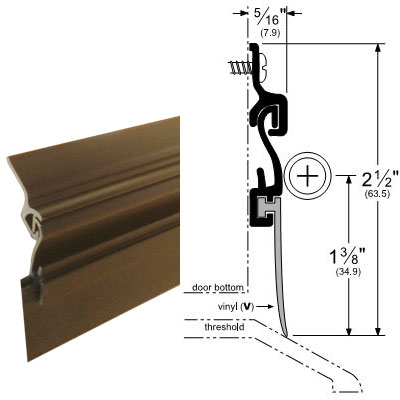

Sized for a three-foot (0.9 meter) opening (overall size 36-1/2
inches (92.7 centimeters) with an overall height of 2-1/2 inches
(63.5 millimeters), it comes with cam and screws for easy
installation. May be cut down to 24" minimum length
Finish: Dark Bronze
Installation Instructions
1. Measure, mark and trim door bottom sweep to fit width of door,
allowing clearance between the two stops.
2. Close door and secure door bottom sweep to outside bottom edge
of door with supplied screws. Top of door bottom sweep should be
2-1/2" above threshold (or floor).
3. With door closed, depress and hold sweep in closed (down)
position. With supplied screw, attach nylon cam to door stop on
latch side of door opening. Cam should be 1-3/8" above threshold
and up against the sweep. When door is closed, the cam will hold
the sweep on closed (down) position.
4. When door is opened, the sweep flips up to allow clearance over
carpet.
