Gordon Glass® Aluminum Finish Wrap-Around Door Bottom Shoe with Vinyl Seal - 36" Doors
CRL Aluminum Finish Wrap Around Door Shoe with Vinyl Weatherseal for 36" Door | DBS221AV36
Category: Miscellaneous
Gordon Glass® Aluminum Finish Wrap-Around Door Bottom Shoe with Vinyl Seal - 36" Doors
SKU: DBS221AV36
UPC:

$53.94 (20% off)

$44.95

Product Details:

For Doors 1-3/4" Thick

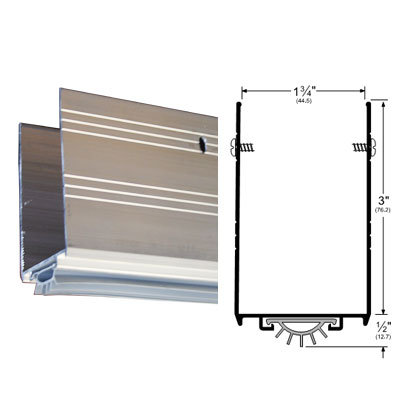

Door shoes are used to seal the area under a door with minimal affect on the appearance of the face of the door. In addition to sealing the gap under the door, door shoes are often used to provide protection for the bottom of the door. Door shoes consist of an aluminum channel with a flexible vinyl insert.
Door Shoe U-Shaped, Seals Against Air, Dust, Water And Sound.

Channels are punched with elongated slots for easy adjustment.
Door sweeps are provided with stainless steel fasteners.

Installation Instructions:
1. Measure, mark and trim door bottom shoe to full width of door. Trim seal 1/16” longer than trimmed  door shoe at each end. Crimp ends to secure insert.
2. Notch both ends to clear stops.
3. Slide door bottom shoe in place and close door. Position so that it makes light even contact with the threshold. Mark door in center of slotted holes.
4. Drill pilot holes in door at marks.
5. Secure door bottom shoe to door with supplied screws. Adjust to ensure light even contact with threshold.
