Category: Sliding and Swinging Shower Door Handles and Magnets
Gordon Glass® 3"Satin Anodized Frameless Shower Door Pull Handle Kit for 3/16", 1/4", 5/16" Glass
SKU: DPH3
UPC: 096523259346
Product Details:
Gordon Glass® 3"Satin Anodized Frameless Shower Door
Pull Handle Kit
For Retrofit or New Installation
No Glass Fabrication Required
Please note: this shower door pull handle
does not include a magnet or a strike
plate
Material: Aluminum
Finish: Satin Anodized
Handle Size: 3 in

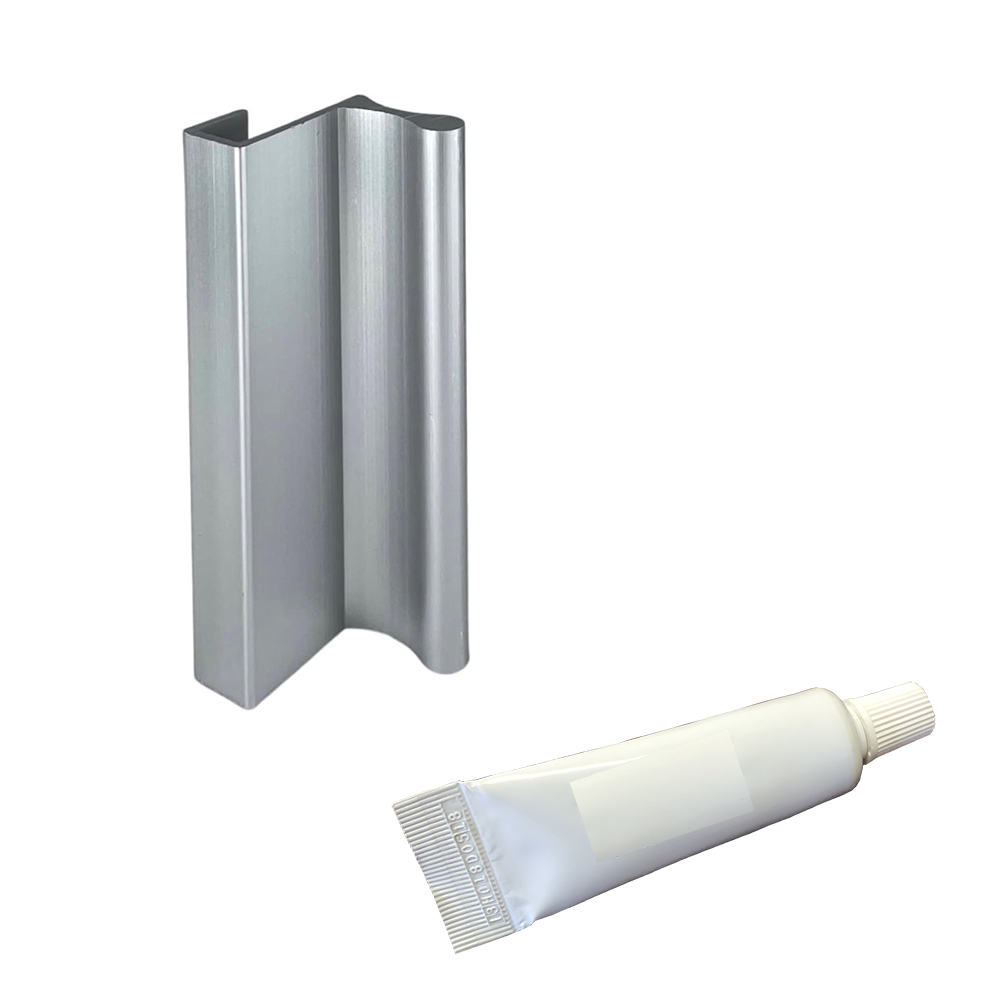

Kit includes:
3" Frameless Shower Door Pull Handle
Rubber Gasket - for use with 1/4" thick glass
Clear 100% Pure RTV Silicone Sealant (0.5 oz. Squeeze Tube) for use
with 3/16" and 5/16" thick glass
Installation Instructions:
The included
rubber gasket is for 1/4" glass only; for 3/16" or
5/16" use provided silicone
For 3/16" and 5/16" glass: Run two beads of
silicone along the inside walls of the pull handle; position and
slide over the edge of the glass. Tape the handle in place to
prevent sliding and allow 24 hours to cure.
For 1/4" glass:
Place the rubber gasket over the
edge of the glass on the desired area and apply the handle over the
gasket (this may require gentle tapping with a rubber mallet).
