Category: Door Pressure Gauge

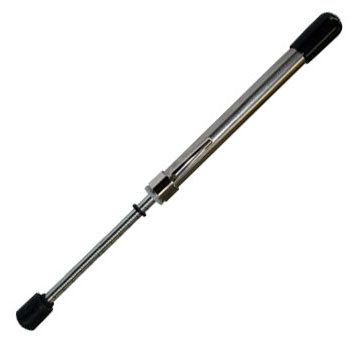

Door Pressure Gauge, 10-50 Lbs
SKU: DPG50
UPC: 096523014464
Product Details:
Range is from 10-50 Pounds
Elevator Door Pressure Gauge instrument
instrument specifically designed to measure the higher forces
typically encountered with elevator doors.
Door Pressure Gauge MEET ADA REQUIREMENTS.
OPERATING INSTRUCTIONS
Set the top (small) o-ring located on the plunger rod on zero, down
against the instrument's flange; or set the o-ring on the desired
force.
Holding the instrument firmly, press slowly against the door at a
point approximately handle-high, and 30 inches away from the door's
hinges.
Read the amount of force required to open the door on the plunger
scale closest to the bottom of the small o-ring.
