Category: Door Pressure Gauge

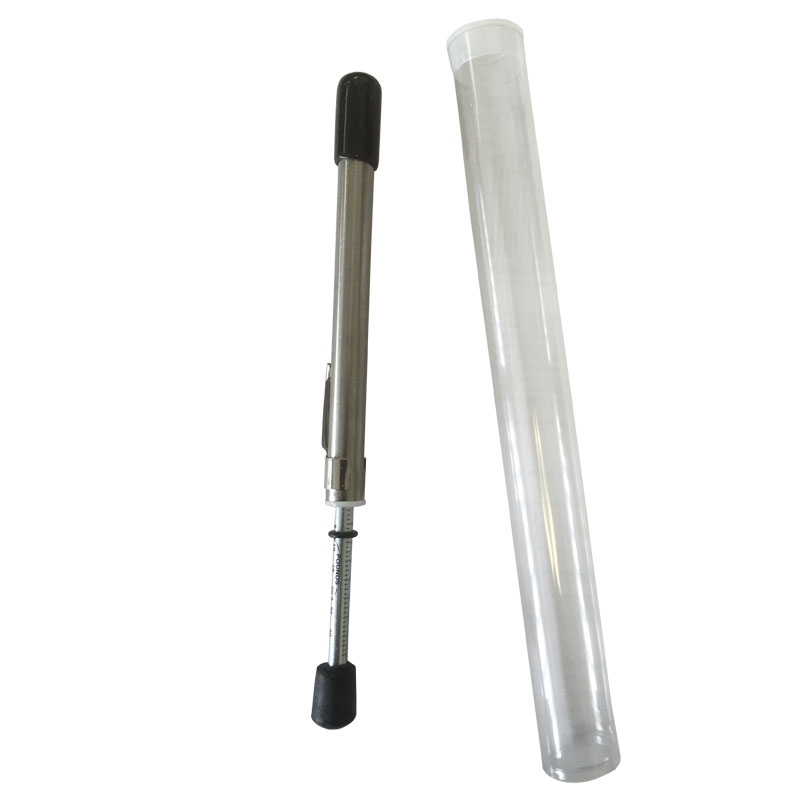

Door Pressure Gauge, 0-35 Lbs with Plastic Protective Tube
SKU: DPG35T
UPC: 096523014389
Product Details:
Range is from 0-35 Pounds
Door Pressure Gauge instrument design
specifically to measure force.
OPERATING INSTRUCTIONS
Set the top (small) o-ring located on the plunger rod on zero, down
against the instrument's flange; or set the o-ring on the desired
force.
Holding the instrument firmly, press slowly against the door at a
point approximately handle-high, and 30 inches away from the door's
hinges.
Read the amount of force required to open the door on the plunger
scale closest to the bottom of the small o-ring.
MEET ADA REQUIREMENTS
The Americans with Disabilities Act requires that both interior and
exterior doors of a building be handicapped accessible.
Door Opening Force (4.1311 ADAAG).
Exterior hinged doors: (Reserved)
Interior hinged doors: 5 lbs (22.2N)
Sliding or folding doors: 5 lbs (22.2N)
Automatic/Power Assisted Doors: (4.13.12) Such doors shall not open
to back check faster than 3 seconds and shall require no more than
15 lbs (66.6N) to stop door movement. If a power assisted door is
used, its door-opening force shall comply with 4.13.11 and its
closing shall conform to the requirements in ANSI A156.19-1984.
Plastic Protective Tube for Door Pressure
Gauge.
Size:
8" long
7/8" diameter
Includes:
One Door Pressure Gauge, 0-35 Lbs
One Plastic Protective Tube
