Product Details:
- Cuts Perfect V-Shaped Notches in Nozzles
- New XL Cuts Longer, Wider Notch in
Nozzles
- Safest Way to Trim V-Notches
|
This CRL XL V-Notch Cutter is the
quickest and safest way to trim your nozzles. Cutting the proper
V-Notch on a urethane cartridge nozzle can be difficult and
dangerous if you do not use the proper tool. The CRL XL V-Notch
Cutter is a high quality tool that comes with tempered steel
jaws, a spring loaded handle with non-slip plastic grips, and a

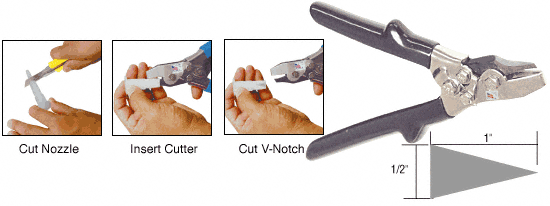

thumb controlled jaw locking device. To use this tool, take a
utility knife and cut the end of the nozzle tip to give yourself a
1/4 inch (6.4 millimeter) or larger bead. Next, insert the CRL
XL V-Notch Cutter tool inside the nozzle. Squeeze the handle
and you have a perfect V-Notch. To correctly set the height of your
V-Notch, place the nozzle (with a pre-cut end) on the pinchweld.
Mark the height of the body panel on the nozzle and trim to that
height. This will prodvide you with the proper height for
compression of the urethane bead.
- Size of V-Notch: 1/2 x 1 in (12.7 x 25.4 mm)
