Product Details:

• Big 11" (279 mm) Diameter Vacuum Pads
•

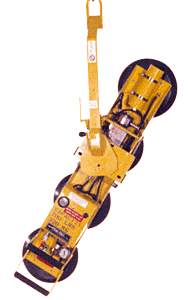

  When you have heavy glass to lift and need cord-free movement we have the equipment to help you get the job done. The CRL Powr-Grip AUP11104DC Powr-Grip Single Channel Vacuum Lifting Frame features four 11 inch (280 millimeters) lipped rubber cups, mounted on a steel channel which, when attached to the glass, measures 12 x 51 inches (305 x 1,300 millimeters).

  Each AUP11104DC carries its own vacuum pump and controls; applies in 6 sec. and releases in 12; weighs only 70 pounds (32 kilograms) ready to work and carries a safe work load rating of 700 pounds (318 kilograms).

The AUP11104DC can be fitted with concave cups for handling curved glass and the individual cups, Cat. No. G3370, are easily replaced if damaged at the job site. Restrictions at the cups minimize the chance of load loss if the glass breaks across one cup. Stocked in 12-Volt DC power, the units are also available in optional 240-Volt AC power. The AUP11104DC comes with a heavy-duty aluminum lift bar which gives the unit 180º of edgewise rotation with positive locking in three positions; 90º of tilt, vertical to flat; and automatic latching in the upright position.

• Lifting Capacity: 700 lb (320 kg)
• Pad Spread Size: 12 in x 51 in (305 mm x 1300 mm)
