Product Details:
Easy Attachment on Smooth, Non-porous Surfaces
Durable Metal Handle With ABS Plunger
Red-Line Indicator Warns User of Any Vacuum Loss
Rust-Resistant Components

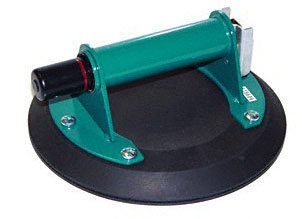

CRL Wood's Vacuum Cups with Hybrid Plunger/Handles combine
Powr-Grip's® lightweight ABS plunger, durable metal handle, and
rubber vacuum pad to create a heavy-duty, rust resistant cup for
use in humid or wet environments. Reliable and economical, these
vacuum cups work for handling windows and other flat glass
products, as well as for handling stone slabs in fabrication
settings. A built-in check valve allows re-pumping without loss of
vacuum, and a release lever permits quick and complete release.
Supplied with protective Carrying Case.
Size: 8" (203 mm)
Lifting Capacity: 125 Lbs. (57 kg)
These specially designed, hand actuated cups operate on a pump
system, and create a vacuum under their gripping pad section. The
pump plunger had a red band to indicate suction level at all times.
When it shows less than 100% vacuum left, simply pump the plunger
until you reach the original vacuum pressure without removing the
cup from the glass. To release, just depress a trigger on the
opposite end of the handle from the plunger. These cups come with a
release valve guard to prevent accidental loss of vacuum. There are
four models of the basic Wood's Powr-Grip® Vacuum Cup. All come
with a vacuum-molded carrying case to protect the cup when not in
use.
This cup has a vertical and horizontal lifting capacity of 150 lbs.
(68 kg), enough for most manual lifting situations. To release,
just press the trigger on the opposite side of the plunger. This is
the choice of vacuum cups by most professional glaziers. Always
remember to use CRL Rubber Conditioning Glycerin to keep your
vacuum cup in good condition.
