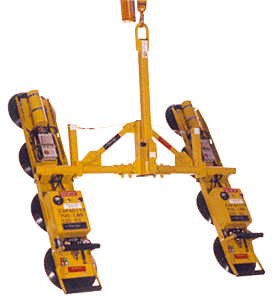

CRL Woods DC Model P2 Two Channel 4-1/2' Spread Vacuum Lifting Frame for Flat Materials
C.R. Laurence CRL Woods DC Model P2 Two Channel 4-1/2' Spread Vacuum Lifting Frame for Flat Materials | P2110445DC
Category: Just Arrived!
CRL Woods DC Model P2 Two Channel 4-1/2' Spread Vacuum Lifting Frame for Flat Materials
SKU: P2110445DC
UPC:

$18,693.37 (20% off)

$15,577.81

Product Details:

  • Big 11" Diameter Vacuum Pads


  • CRL Wood's Channel Lifters are comprised of one or more Pad Channels and interchangeable Lift Frames for manually rotating and tilting materials. These vacuum lifters may be ordered as complete units or as individual components to expand existing Channel Lifter systems. Lift Frames are available in single-channel or double-channel styles. Pad Channels can be switched from one frame to another in minutes.


    Standard Vacuum Pad Spread:
    51 inches x 54-1/4 inches (1295 x 1378 millimeters)

    Number/Size of Vacuum Pads:
    8 / 11 inches (280 millimeters) diameter lipped vacuum pads

    Load Capacity:
    1400 pounds (635 kilograms)
  • Lifting Capacity: 1400 lb (635 kg)
  • Pad Spread Size: 51 x 54-1/4 in (1295 x 1378 mm)
  • F.O.B : Laurel, MT.
