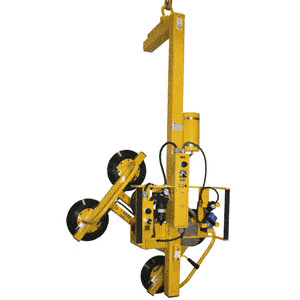

CRL Wood's 700 Pound Capacity Manual Rotation C-Frame Vacuum Lifter- AC Model
Category: Just Arrived!
CRL Wood's 700 Pound Capacity Manual Rotation C-Frame Vacuum Lifter- AC Model
SKU: CFMR411LACS
UPC:
$16,040.86
(20% off)
$13,367.38
Product Details:
- Reaches Into the Glass Case to Lift Large Lites
This CRL Wood's Manual Rotation C-Frame
has a unique shape that enables the operator to easily remove glass
from shipping crates with the crate's face removed. Once removed
from the case, the glass can be rotated 360º edgewise. Its
rugged construction is designed for long service life on high
volume production lines.
The CFMR411LACS uses standard 115 volt
A.C. power to enable the vacuum system to lift up to 700 pounds
(320 kilograms) of glass. Only 3 seconds are required to attach the
four 11 inch (280 millimeters) lipped vacuum cups to the glass and
2 seconds to release. The throat depth is 15 inches (381
millimeters) so it can reach into deep cases easily.
- Lift Capacity: 700 lb (320 kg)
- Pad Spread Size: 30 x 40 in (762 x 1016 mm)
- F.O.B : Laurel, MT.
