Product Details:

• Load Capacity is 500 Lbs. (225 kg)
•

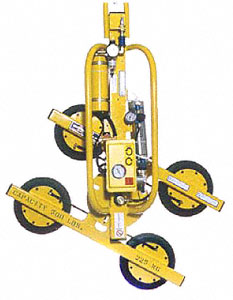

  These CRL Powr-Grip® Vacuum Lifters combine powered 90 degree rotations, in approximately four seconds, making them ideal for high-output production lines. The standard pad spread is 23-1/4 x 29-1/4 inches (587 x 740 millimeters). The maximum load capacity is 500 pounds (225 kilograms) with the four, 9 inch (229 millimeter) pads. The standard operating power is compressed air, 4.5 SCFM. Standard Features: Vacuum gauge, Vacuum reserve tank, Vacuum line filter, Spring-mounted vacuum pads, and Blow-off for quick release. Available options include: Vacuum loss warning buzzer, Individual vacuum pad shutoffs, and Closed cell foam pad rings. Contact CRL Technical Sales for additional information at 1-800-421-6144 Ext. 7720.
