Product Details:
- 240 Volt
- Economical Lifter for Production Line Use
- 360 Degree Continuous Edgewise Rotation
- Excellent Choice for Edger and Beveler
Users
|

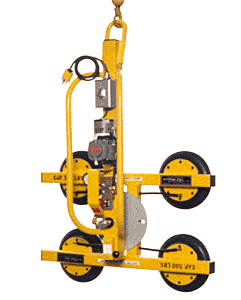

The CRL Wood's Manual Rotating Vacuum Lifting
Frame is a great choice when you need maximum ease in
the manipulation of heavy loads. Built for high volume or high load
production lines, attaches to the glass in approximately five
seconds. The standard pad spread is 30 x 24 inches (762 x 609
millimeters) measured at the edge of the four, 279 millimeter (11
inch) lipped vacuum cups. The unit itself weighs 29 kilograms (65
pounds). Rotational load movement is 360º edgewise.
Standard equipment includes a vacuum gauge, vacuum reserve tank,
vacuum line filter, spring mounted pads and a twist lock electrical
plug.
Optional features are also available on special order including a
green safe lift light and a vacuum loss warning buzzer.
Powr Lifting Frames for Rent
CRL now offers large Power Lifting Frames
on a week to week rental basis. Customers are responsible for all
common carrier freight charges and may require to provide a
security deposit. Usage time is based on a one week minimum and
begins on the day the frame arrives at the customer. Rental billing
ends on the day the frame is shipped back to the manufacturer.
Billing is for full weeks only, no partial weeks. For details,
availablility and actual pricing please contact us Glass and
Glazing Divison at (888) 663-9830 extension 7720.
Stipulations:
- Available Frames (Spec Data Sheets on Request)
P11104AU Capacity 318 kg.
AUMRT411LDC Capacity 318 kg.
AUP21104412 Capacity 635 kg.
AUP211047 Capacity 635 kg.
- Usage time is based on a one week minimum and begins on the day
the frame arrives at the customer. Rental billing ends on the day
the frame is shipped back to the manufacturer. Billing is for full
weeks only, no partial weeks.
- Customers are responsible for both freight in and out, and must
ship the frame back packed in the same manner and condition as it
arrived.
- Rentals can only be made to open account CRL customers with
current account balances and available credit.
- Customer must maintain and operate frames as per the
manufacturer's instructions for use. Damage to, or loss of the
frame are the responsibility of the customer. Only a few of these
rental frames are available, so advanced reservations are
necessary. The manufacturer's engineers will contact the customer
to confirm the frame being rented is appropriate for a safe and
effective lift.
