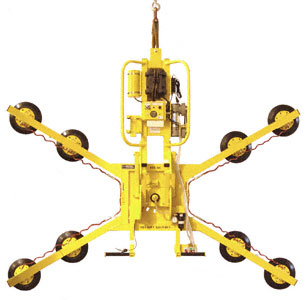

CRL Woods 1400 Series High Flow Quadra DC Tilt Rotator
Category: Just Arrived!
CRL Woods 1400 Series High Flow Quadra DC Tilt Rotator
SKU: MRTA811LDC
UPC:
$19,844.09
(20% off)
$16,536.74
Product Details:
- Load Capacity 1400 lbs. (635 kg)
CRL Quadra Tilt Lifters feature a unique
four-bar mechanism that significantly reduces the effort of tilting
heavy loads between flat and upright positions. This tilt mechanism
also reduces hazards associated with lifting loads from upright
racks. When a load is tilted to either the upright or the flat
position, the lifter maintains the load position automatically
without using latches, eliminating the tendency for a load to "kick
back" at the operator's knees.
Includes: Low vacuum warning light, On-board battery and charger,
Battery energy gauge, Vacuum gauge, Vacuum line filter, Vacuum
reserve tank, Spring-mounted pads, Removable pad mounts, Extension
arms, and Blow-off for quick release.
- Load Capacity: 1400 lbs (635 kg)
- Extended Pad Spread: 69 x 107-1/4 in (1752 x 2724 mm)
- Standard Pad Spread : 49 x 72-1/2 inches (1244 x 1841 mm)
