Product Details:

• Load Capacity 1100 Pounds (500 kg)
•

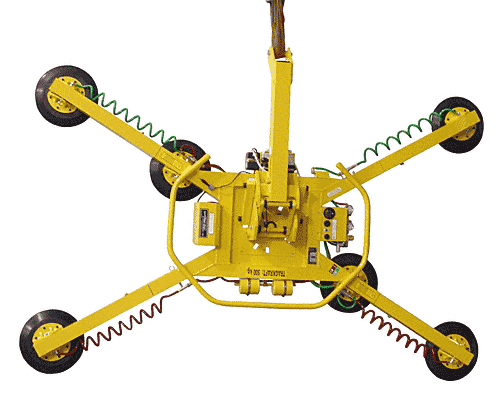

  CRL Quadra Tilt Lifters feature a unique four-bar tilt mechanism that significantly reduces the effort of tilting heavy loads between flat and upright positions. This tilt mechanism also reduces hazards associated with lifting loads from upright racks. When a load is tilted to either the upright or the flat position, the lifter maintains the load position automatically without using latches, eliminating the tendency for a load to "kick back" at the operator's knees. The MRTA611LDC also features a dual vacuum system, 360 degree manual rotation, removable pads and extension arms that accommodate a variety of load sizes and shapes. The dual vacuum system features two vacuum line circuits, allowing the lifter to maintain the vacuum level for one circuit even if an unexpected vacuum loss occurs in the other one. This system is designed to reduce the risk of falling loads, which could result from breakage or other accidents that compromise one area of the vacuum system. In addition, it features audible and visible alarms that warn the operator whenever the vacuum level is not sufficient for lifting the maximum load weight. Complies with CE Standard EN 13155.




• Load Capacity: 1100 lbs (500 kg)
• Standard Operating Power: 12 Volts DC, 8 amps
• Shipping Crate Size: 64 x 42 x 10 in (1626 x 1067 x 254 mm)
