Category: CRL Vienna 537 5º Pre-Set Wall Mount Full Back Plate Hinge

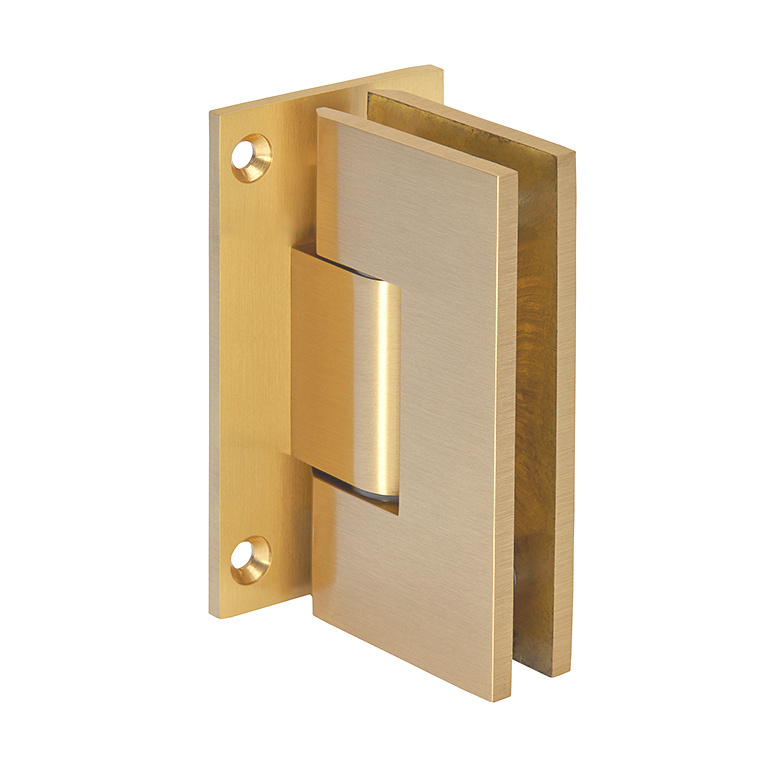

CRL Vienna 537 Series Satin Brass Wall Mount Shower Door Hinge with Internal 5 Degree Pin
SKU: V1E537SB
UPC:
Product Details:
Accommodates 3/8" to 1/2" Glass
Three Year Warranty
Solution for Wider, Heavier Doors
The CRL Vienna Series of professional hinges is
designed to accommodate 3/8 to 1/2 inch (10 to 12 millimeter)
glass. Available in both Wall Mount and Glass-to-Glass styles, it
provides design flexibility. Vienna Series Hinges are constructed
of solid brass with all moving parts (pins and springs) in
stainless steel. Two strategically placed pins inside the hinge
provide template options, and satisfy two schools of thought for
mounting shower door hinges. It allows the Vienna Hinge to be used
with it's own CRL "mouse-ears" cut-out, or in some cases
fit competitive "mouse-ear" cut-outs. On the other hand,
to enable increased adjustability, the two pins can be removed
which allows the Vienna Hinge to fit it's own CRL rectangular
shape, square cornered cut-out, or in some cases, fit competitive
rectangular shaped, square cornered cut-outs.
Color: Satin Brass
Minimum Order: 1 Each
Additional Product Information:
Using two hinges with 3/8 or 1/2 inch glass (10 or 12 millimeters)
the hinge will hold up to 110 pounds (50 kilograms) with a maximum
width of 36 inches (914 millimeters).
Using three hinges with 3/8 or 1/2 inch glass (10 or 12
millimeters) the hinge will hold up to 140 pounds (63 kilograms)
with a maximum width of 36 inches (914 millimeters).
Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter)
Tempered Safety Glass
Construction: Solid Brass
Fabrication Requirements: Optional Square or "Mouse Ears"
Cut-out
Includes: One Hinge, Gaskets, Screws and Template
Includes Internal 5 Degree Pin
