Product Details:

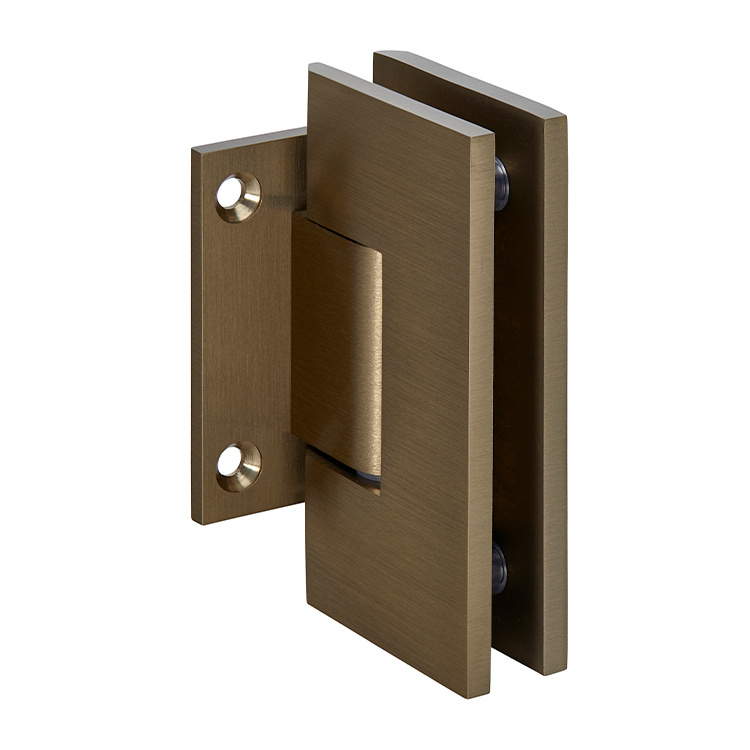

 The CRL Vienna Series of professional hinges is designed to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. Available in both Wall Mount and Glass-to-Glass styles, it provides design flexibility. Vienna Series Hinges are constructed of solid brass with all moving parts (pins and springs) in stainless steel. Two strategically placed pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. This allows the Vienna Hinge to be used with it's own CRL "mouse-ears" cut-out, or in some cases fit competitive "mouse-ears" cut-outs. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it's own CRL rectangular shape, square cornered cut-out, or in some cases, fit competitive rectangular shaped, square cornered cut-outs.

Color: Brushed Bronze

Minimum Order: 1 Each

Additional Product Information:
Using two hinges with 3/8 or 1/2 inch glass (10 or 12 millimeters) the hinge will hold up to 110 pounds (50 kilograms) with a maximum width of 36 inches (914 millimeters).
Using three hinges with 3/8 or 1/2 inch glass (10 or 12 millimeters) the hinge will hold up to 140 pounds (50 kilograms) with a maximum width of 36 inches (914 millimeters).

Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered Safety Glass
Construction: Solid Brass
Fabrication Requirements: Optional Square or "Mouse Ears" Cut-out
Includes: One Hinge, Gaskets, Screws and Template
